Dunnage Bag
Airpack Dunnage Air Bag Ideal Logistic Cargo Secure and Protection solutions.

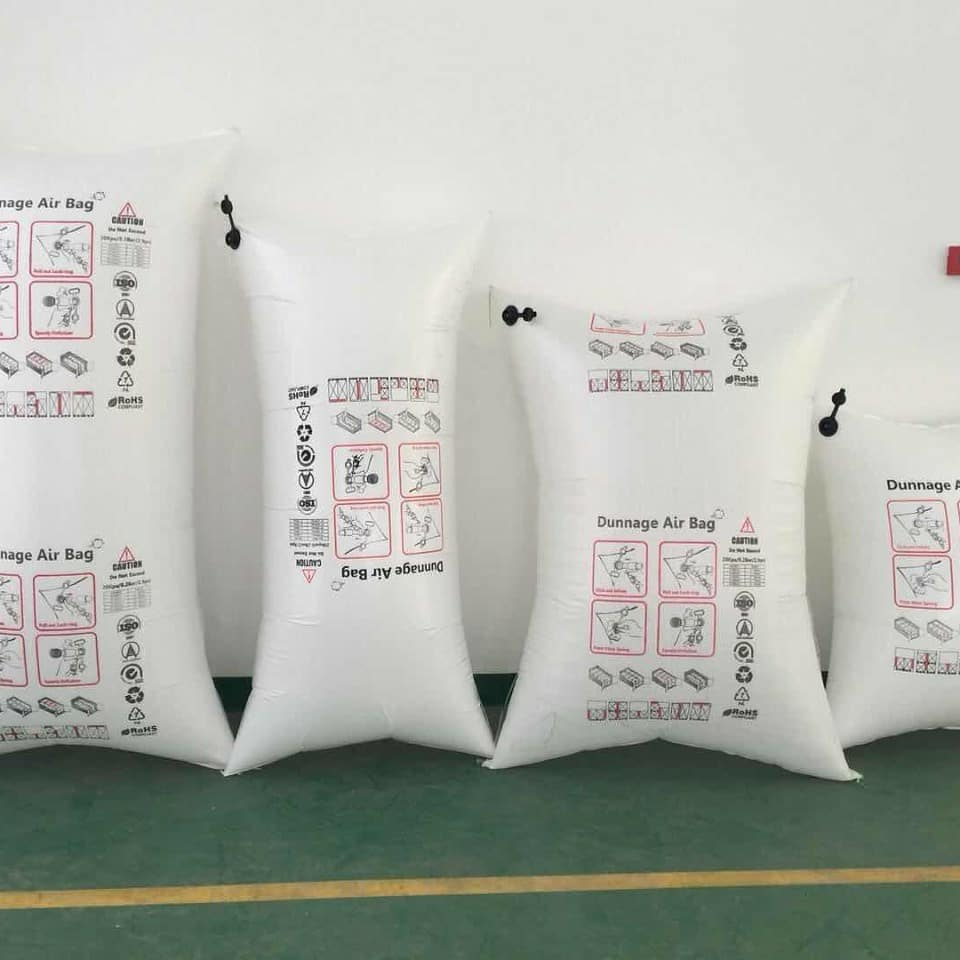

AIRPACK Dunnage Air Bag provide an efficient load securing solution for cargo that is transported in large shipping vessels, by train or by heavy good’s vehicles. The AIRPACK Dunnage Air Bag is easy to use, fast inflation and deflation, can be re-used and come with a fixed connection at the valve.
Dunnage Bag by AIRPACK
The internal bag is made of extruded five-layer pa-based nylon films
Dunnage Bags by other Company
The internal bag is made of Polyethylene (LDPE)
Technical Specification
| Sr. no. | Description | Parameters | |
| 1. | Working Pressure | 20kpa (2.9 psi) | |
| 2. | Burst Pressure | 60kpa (8.8 psi) | |
| 3. | Air Deflation | (5-10) % , After 90 days | |
| 4. | Outer Layer Material specs | ||
| Material | Medium Duty Woven PP | ||
| GSM | 100 | ||
| 5. | Inner Liner specs | ||
| Material | Nylon film | ||
| Thickness | 70 micron | ||
| 6. | Valve Type | Spring, reusable | |
| 7. | Sealing Method | Heating | |
| 8. | Standard Bag Sizes | ||
| Width | Length | Maximum Void Size Usable | |
| 900mm | 900/1200/1800/2100 (mm) | 500mm | |
| 9. | Tolerance | +/- 5 % for dimension | |
Feature & Benefits

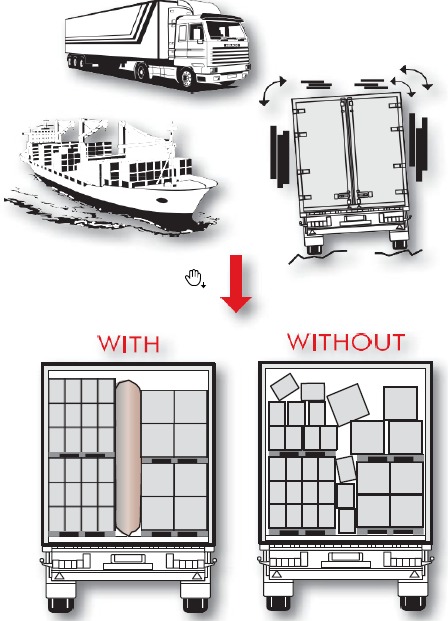

- Prevents transport damage
- Clever loading
- Quick and easy to fit
- Reusable and recyclable
- Up to todays standards
Secure your critical cargo with high-quality dunnage bags
